General Features - Ceramic Backings

Ceramic washers are made of a mixture of natural inorganic materials (soapstone, clay, kaolin). The aluminium adhesive tape used to fix them does not contain halogen elements and there are no chemical reactions during application.

Single-sided ceramic washers are suitable for various arc welding processes:

  • coated electrode for manual arc welding (process 111 - MMA)
  • consumable arc welding, gas shielded arc welding for both solid and flux cored wire (processes 131, 135, 136, 138 - MIG/MAG).

The practical use of ceramic washers is easy to learn and any welder can produce a high quality weld.

Ceramic Backings

Ceramic on aluminium-tape

To order

Type

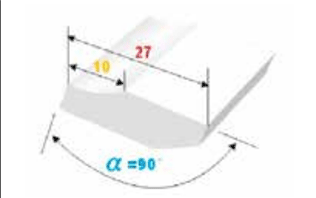

Sizes (mm)

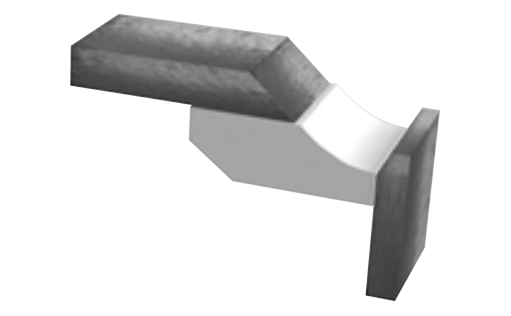

3D diagram

Applications

Package

W000 010 391

CERAMIC TA1 - 6 mm

Usable procedures::

MMA: no
TIG: yes
MIG MAG: yes
SAW: no

ceramic ta1 mini

ceramic ta1 3d

ceramic ta1 alkalm

600 mm / piece
10 pieces per bag (6 meters)
6 bags/ carton (36 meters)

W 000 010 392

KERALINE TA2 - 9 mm

Usable procedures::

MMA: no
TIG: yes
MIG MAG: yes
SAW: no

keraline ta2 mini

2

2 2

600 mm / piece
10 pieces per bag (6 meters)
6 bags/ carton (36 meters)

W 000 010 393

KERALINE TA3 - 13 mm

Usable procedures::

MMA: yes
TIG: no
MIG MAG: yes
SAW: no

keraline ta3

3

3 3

600 mm / piece
10 pieces per bag (6 meters)
6 bags/ carton (36 meters)

W 000 010 394

KERALINE TF1 - 6 mm

Usable procedures::

MMA: no
TIG: yes
MIG MAG: yes
SAW: no

keraline tf1 6mm

4

4 4

600 mm / piece
10 pieces per bag (6 meters)
6 bags/ carton (36 meters)

W 000 010 395

KERALINE TF2 - 9 mm

Usable procedures::

MMA: no
TIG: yes
MIG MAG: yes
SAW: no

keraline tf2 9mm

5

5 5

600 mm / piece
10 pieces per bag (6 meters)
6 bags/ carton (36 meters)

W 000 010 396

KERALINE TF3 - 13 mm

Usable procedures::

MMA: yes
TIG: no
MIG MAG: yes
SAW: no

keraline tf3 13mm

5

6 6

600 mm / piece
10 pieces per bag (6 meters)
6 bags/ carton (36 meters)

W 000 010 397

KERALINE TR1 - 6 mm

Usable procedures::

MMA: yes
TIG: no
MIG MAG: yes
SAW: no

kerline tr1 6mm

6

7 7

600 mm / piece
50 pieces per bag (30 meters)
5 bags/ carton (150 meters)

W 000 010 398

KERALINE TR2 - 7 mm

Usable procedures::

MMA: yes
TIG: no
MIG MAG: yes
SAW: no

 keraline tr2 7mm

 6

 8 8



600 mm / piece

50 pieces per bag (30 meters)

5 bags/ carton(150 meters)

W 000 010 399

KERALINE TR3 - 8 mm

Usable procedures::

MMA: yes
TIG: no
MIG MAG: yes
SAW: no

 keraline tr3 8mm

 6

 8 8



600 mm / piece

20 pieces per bag (12 meters)

8 bags/ carton(96 meters)

 W 000 010 400

KERALINE TR4 - 9 mm

Usable procedures::

MMA: yes
TIG: no
MIG MAG: yes
SAW: no

 keraline tr4 9mm

 6

 8 8



600 mm / piece

20 pieces per bag (12 meters)

7 bags/ carton(84 meters)


W 000 010 401

KERALINE TR5 - 12 mm

Usable procedures::

MMA: yes
TIG: no
MIG MAG: yes
SAW: no

 keraline tr5 12mm

 7

 8 8



600 mm / piece

20 pieces per bag (12 meters)

5 bags/ carton(60 meters)

W 000 010 402

KERALINE TR6 - 15 mm

Usable procedures::

MMA: yes
TIG: no
MIG MAG: yes
SAW: no

 keraline tr6 15mm

 8

 8 8



600 mm / piece

15 piece tasakontként (9 meters)

5 bags/ carton(45 meters)

 W 000 262 368

KERALINE TJ10 T FULL PENETRATION

Usable procedures:

MMA: yes
TIG: yes
MIG MAG: yes
SAW: yes

 keraline tm2 18mm





600 mm /piece

15 pieces per bag (9 meters)

5 bags/carton(36 meters)

 W 000 275 493

SET OF CERAMIC BACKING RAD 150

Usable procedures:

MMA: yes
TIG: yes
MIG MAG: yes
SAW: yes

 keraline tm2 18mm





16 pieces/circles

6 circles/carton(18 meters)

 W 000 275 532

SET OF CERAMIC BACKING RAD 200

Usable procedures:

MMA: yes
TIG: yes
MIG MAG: yes
SAW: yes






4pcs/Segment

20 Segment/SET

12 Sets/carton(12 meters)

 W 000 404 095

SET OF CERAMIC BACKING RAD 100

Usable procedures:

MMA: yes
TIG: yes
MIG MAG: yes
SAW: yes

 keraline tm2 18mm

 10

 10 10



12 pieces/circles

22 circles/carton(22 meters)

Ceramic on metallic support

To order

Type

Sizes (mm)

3D diagram

Applications

Package

 W 000 010 403

KERALINE TM1 - 13 mm

Usable procedures::

MMA: yes
TIG: yes
MIG MAG: yes
SAW: yes

 keraline tm1 13mm

 9

 9 9



600 mm / piece

10 pieces per bag (6 meters)

7 bags/ carton(42 meters)

 W 000 010 404

KERALINE TM2 - 18 mm

Usable procedures::

MMA: yes
TIG: yes
MIG MAG: yes
SAW: yes

 keraline tm2 18mm

 10

 10 10



600 mm / piece

9 pieces per bag (5.4 meters)

5 bags/ carton(27 meters)


CERAMIC BACKINGSCERAMIC BACKINGS


For a well-made welding bead:

  • Without copper contamination
  • Without risk of burn through in the first pass position (used as a support)
  • Without re-welding
  • Without risk of lack of fusion
  • No turning of the work piece
  • Bigger root thickness permits higher welding current for the hot pass
  • An increase in first pass deposit rate
  • Wide root gap
  • Total penetration without turning the parts to be welded
  • Total penetration of joints difficult to access in reverse position
  • Smooth profile of the root pass

For a well-made weld preparation before welding:

  • Ideal to compensate for variations in preparation of sheet edge backlashes
  • Easy to use (adhesive/metallic support
  • Simplify chamfering preparations

For higher productivity:

  • Without gouging operation
  • Without grinding operation
  • Provides time saving and high quality
  • Easy-to-use slats technique
